Maupiti SLA study - SWOT L3 250m

Left swath

The left swath is the one located on the eastern side of the map because the satellite is heading towards South in descending passes.

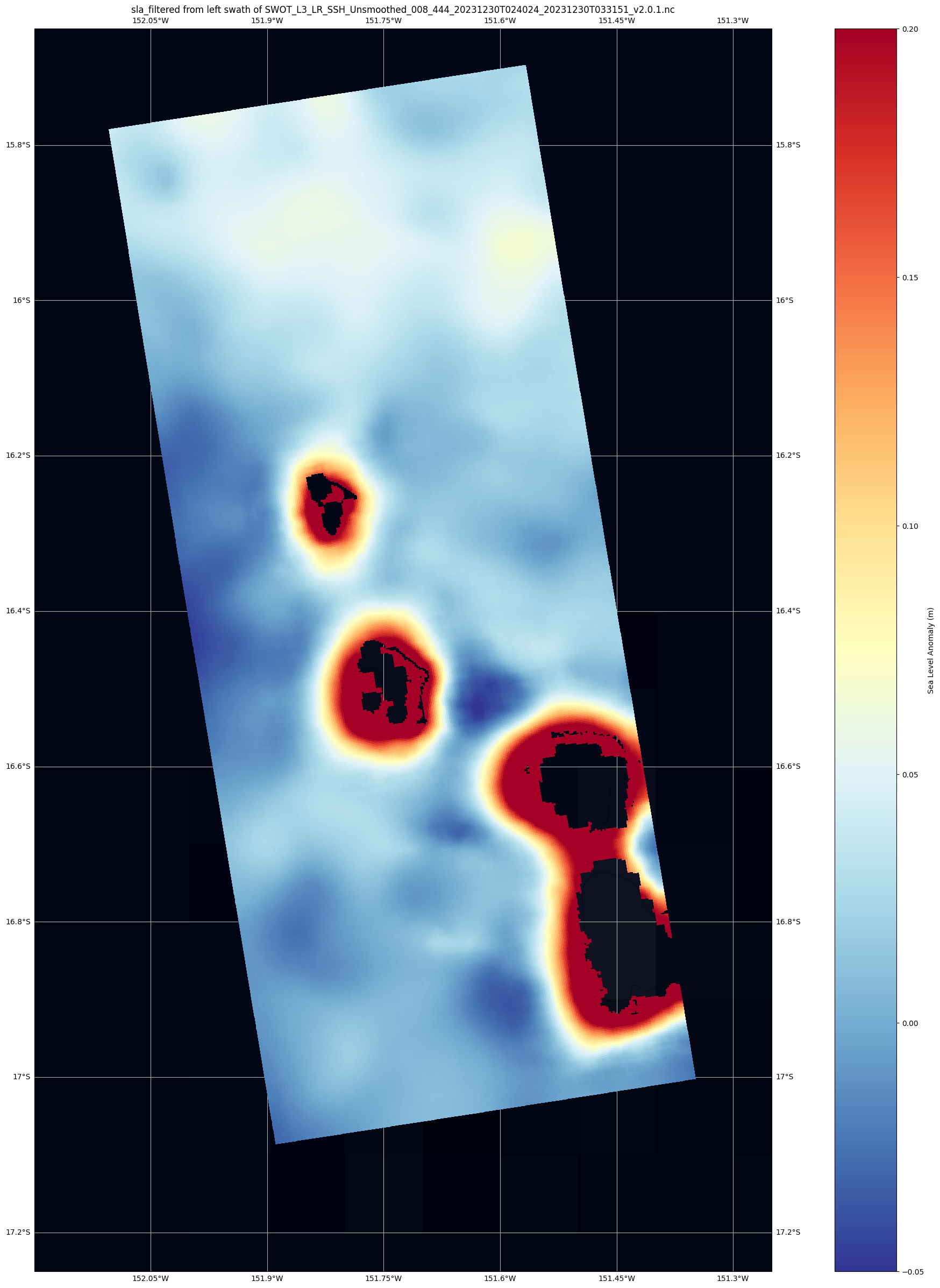

sla_filtered from SWOT_L3_LR_SSH_Unsmoothed_008_444_20231230T024024_20231230T033151_v2.0.1.nc

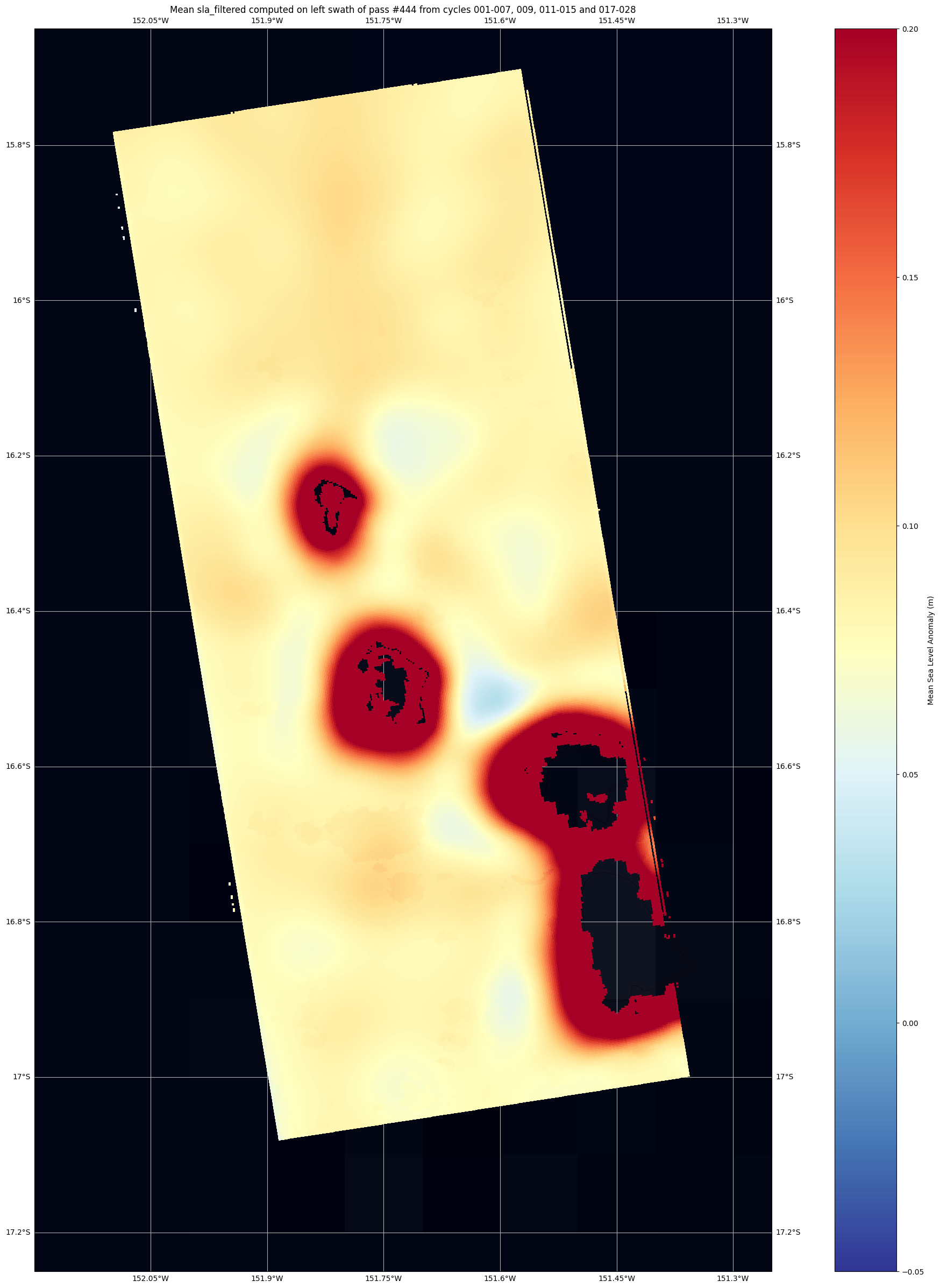

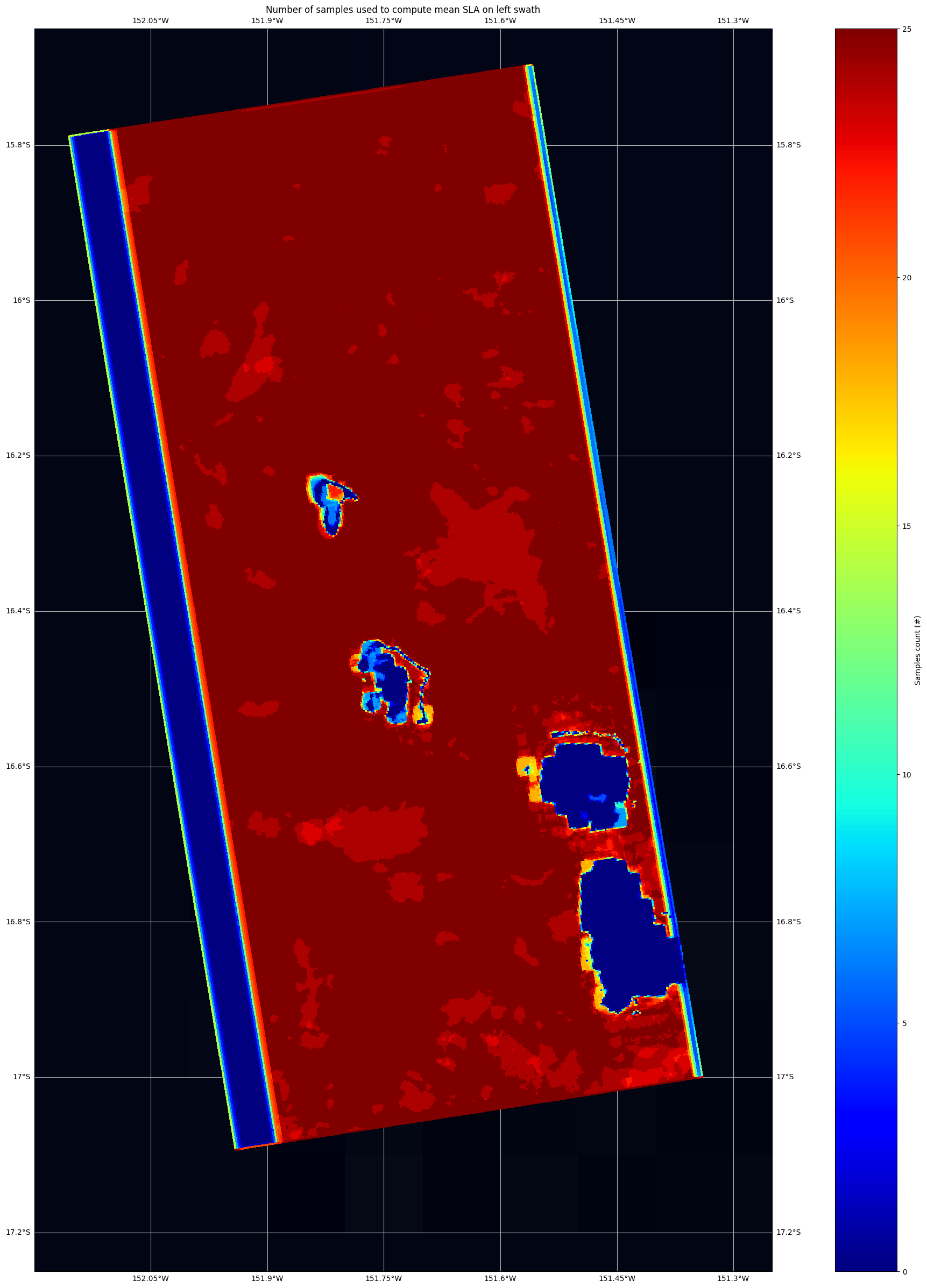

Mean computed over 25 cycles

Out of the 28 cycles of SWOT L3 250m available to this day, 3 have been excluded from the mean computations:

Cycle 008 because it is the target of the study
Cycle 010 due to lack of sla_filtered data
Cycle 016 due to lack of sla_filtered data

Cubic interpolation has been used to regrid data on the same coordinates as the swath from cycle 008 (2023-12-30), before computing average value for each pixel.

Full size plot 1 - Full size plot 2 - CSV

Small scale variations (sla_filtered - mean)

Right swath

The right swath is the one located on the western side of the map because the satellite is heading towards South in descending passes.

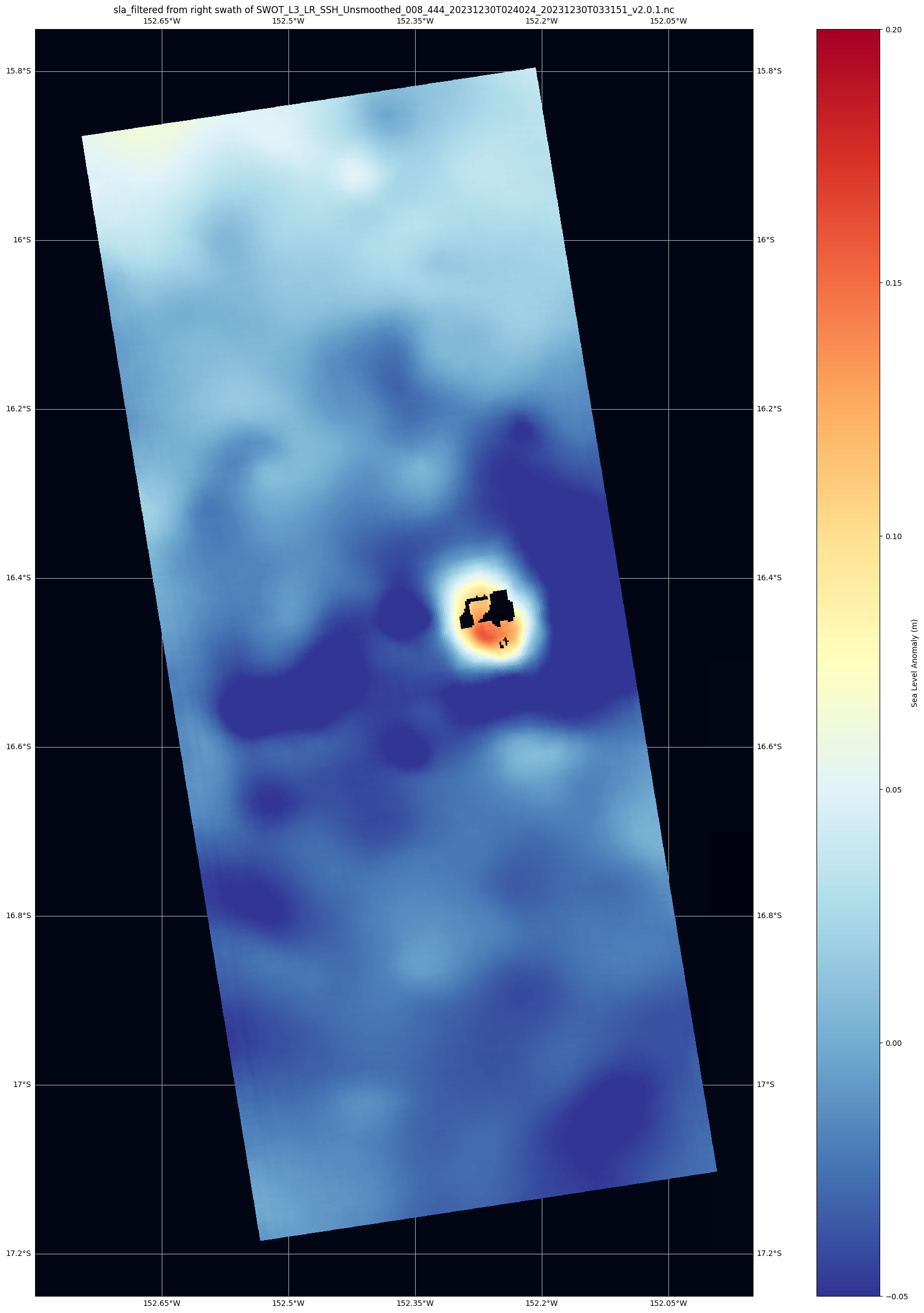

sla_filtered from SWOT_L3_LR_SSH_Unsmoothed_008_444_20231230T024024_20231230T033151_v2.0.1.nc

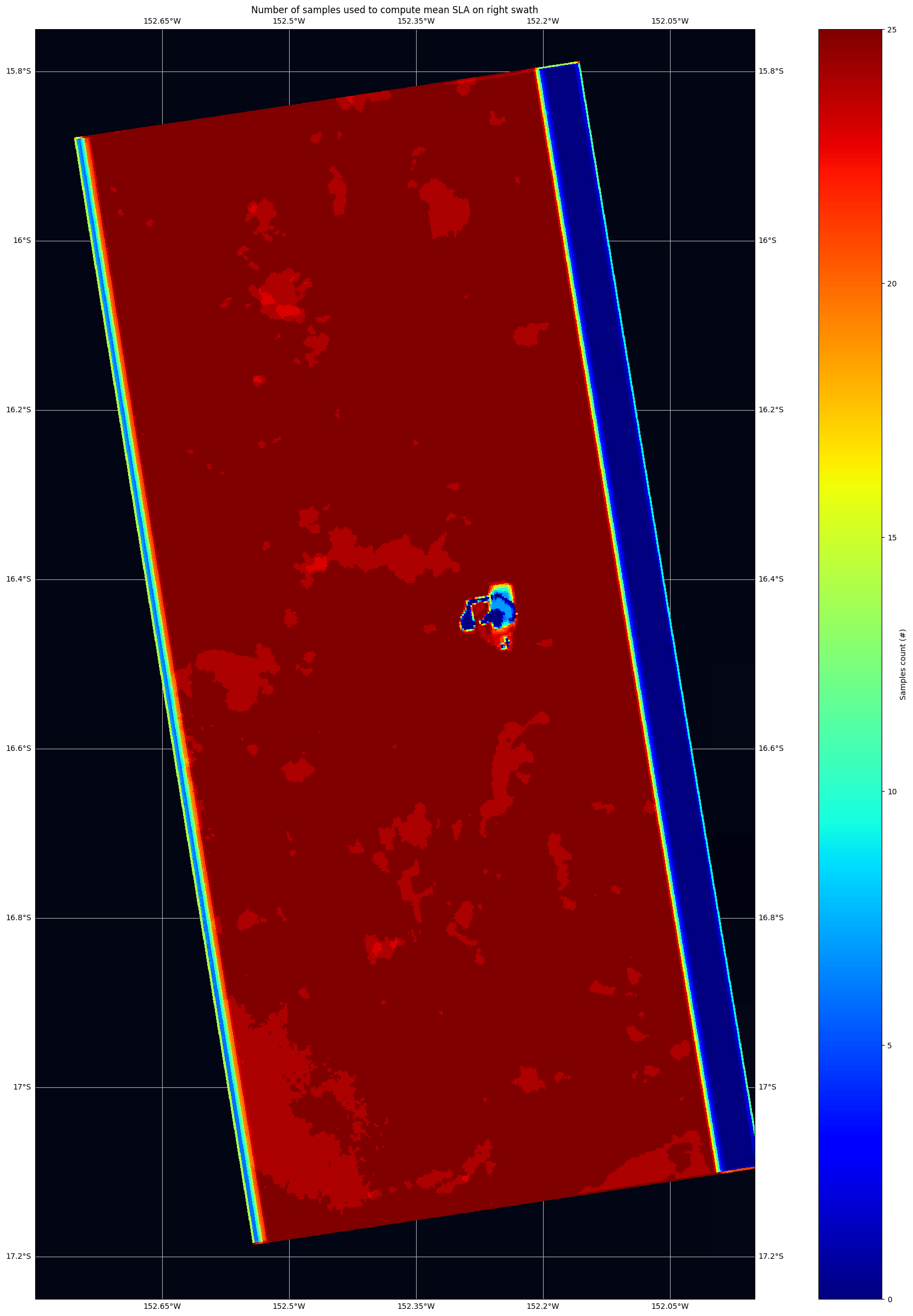

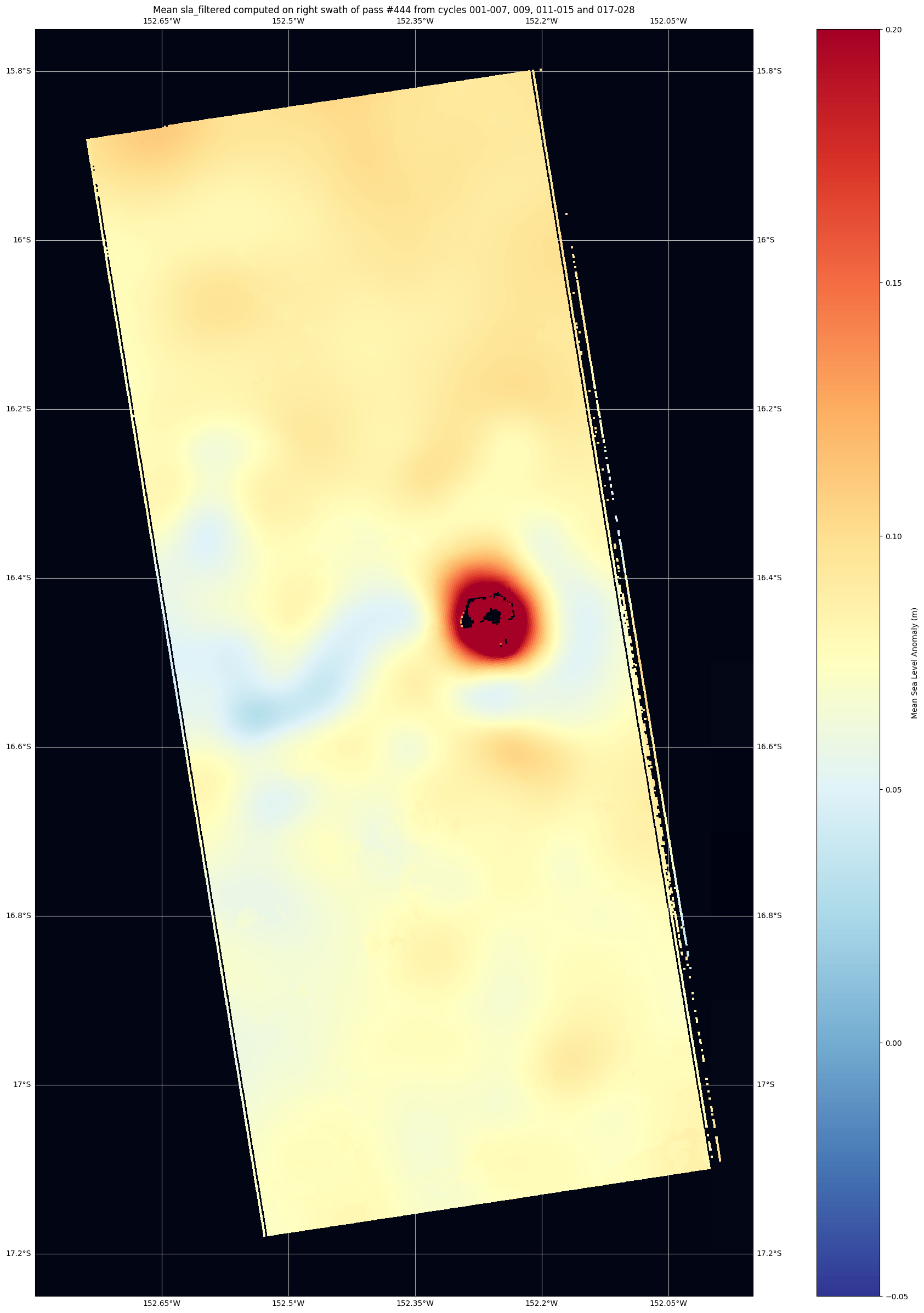

Mean computed over 25 cycles

Out of the 28 cycles of SWOT L3 250m available to this day, 3 have been excluded from the mean computations:

Cycle 008 because it is the target of the study
Cycle 010 due to lack of sla_filtered data
Cycle 016 due to lack of sla_filtered data

Cubic interpolation has been used to regrid data on the same coordinates as the swath from cycle 008 (2023-12-30), before computing average value for each pixel.

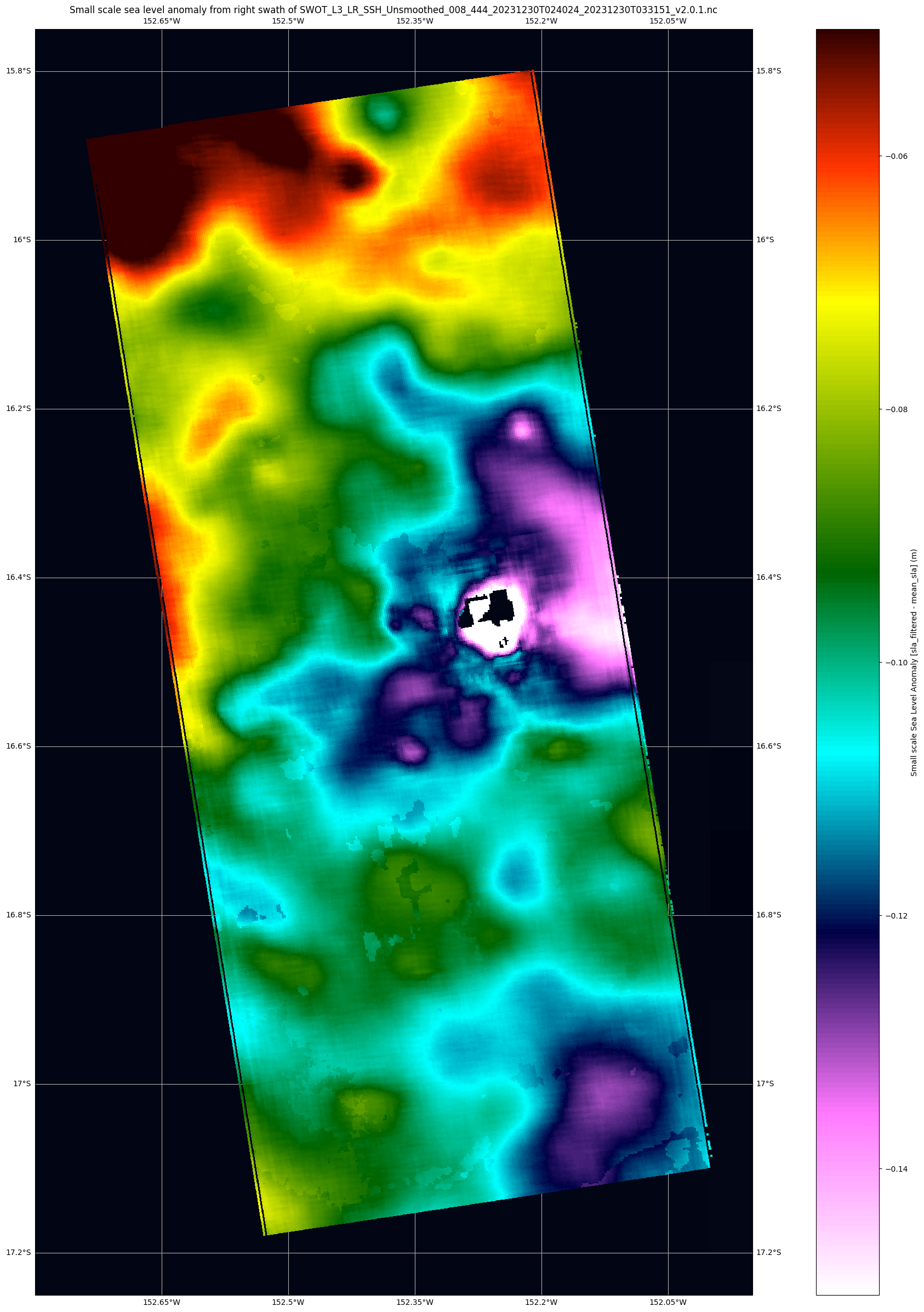

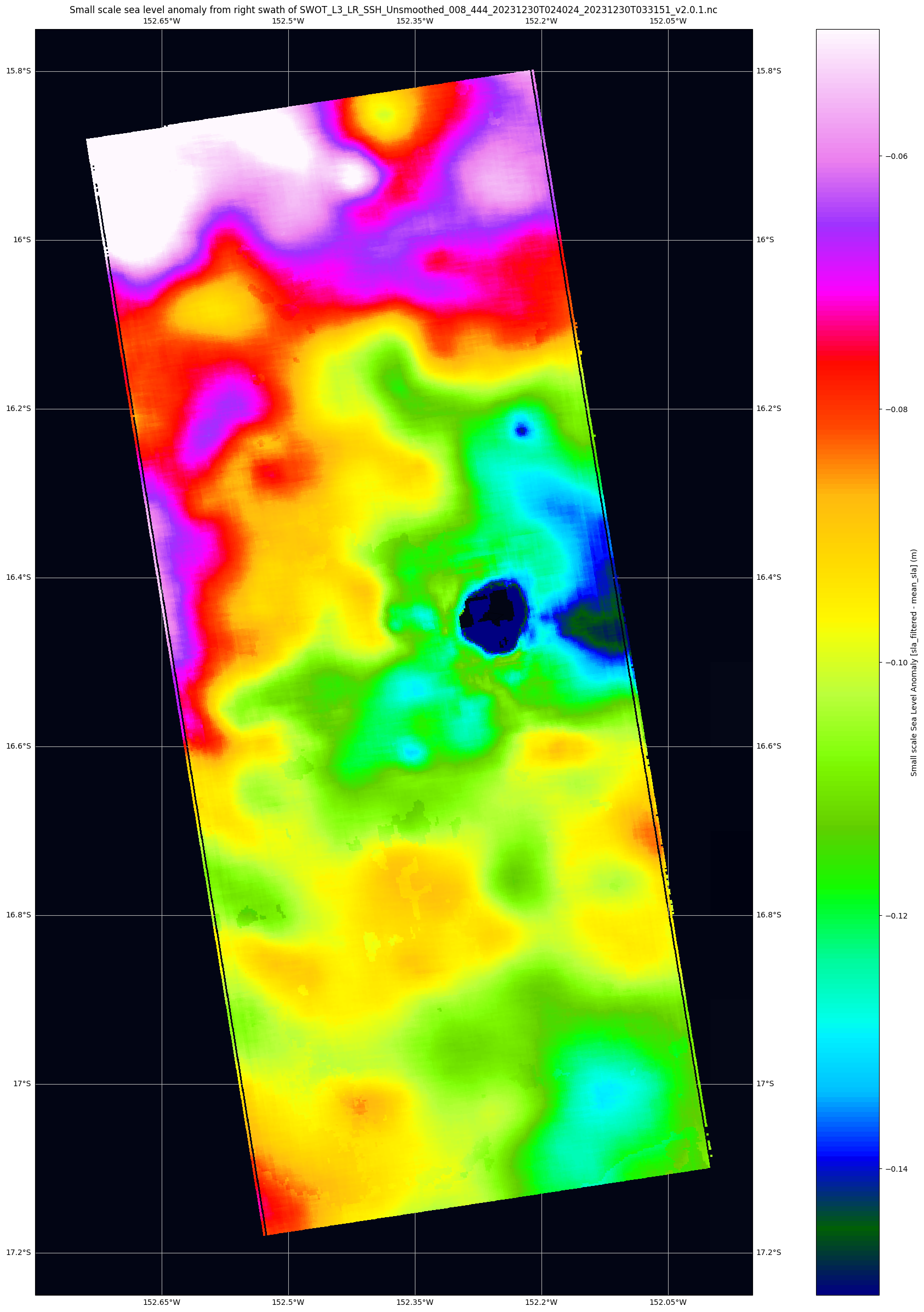

Small scale variations (sla_filtered - mean)

Both swaths

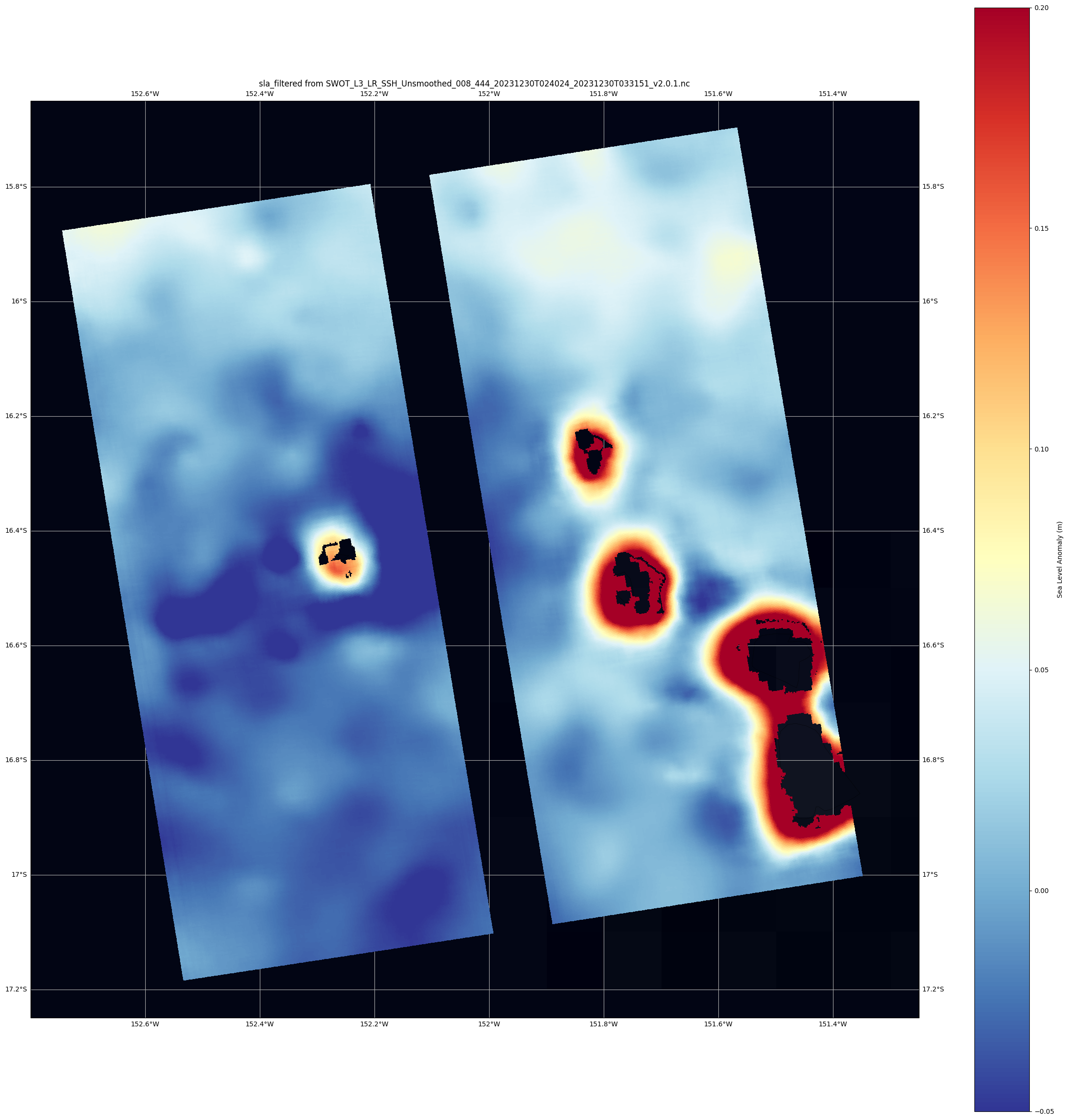

sla_filtered from SWOT_L3_LR_SSH_Unsmoothed_008_444_20231230T024024_20231230T033151_v2.0.1.nc

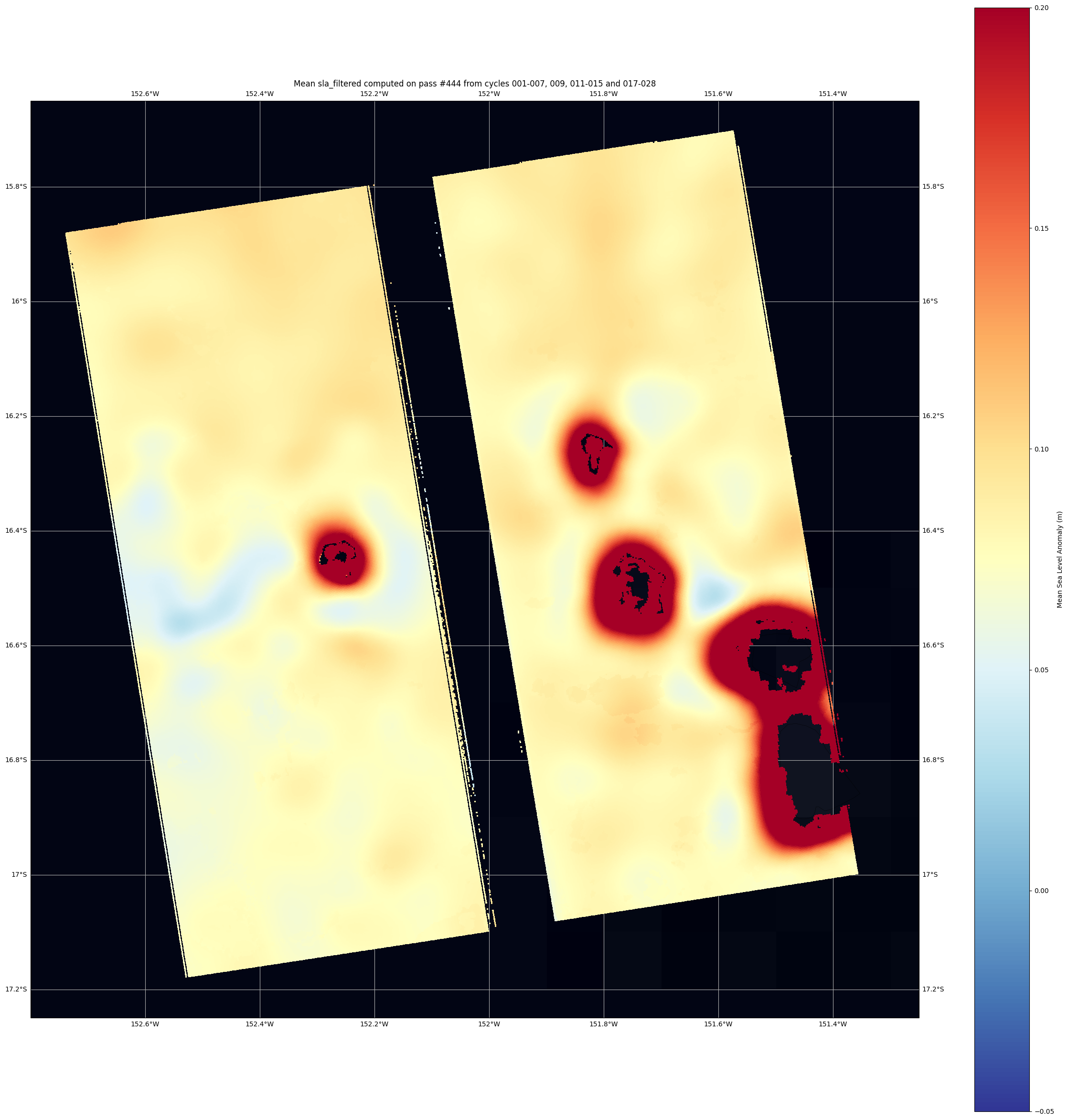

Mean computed over 25 cycles

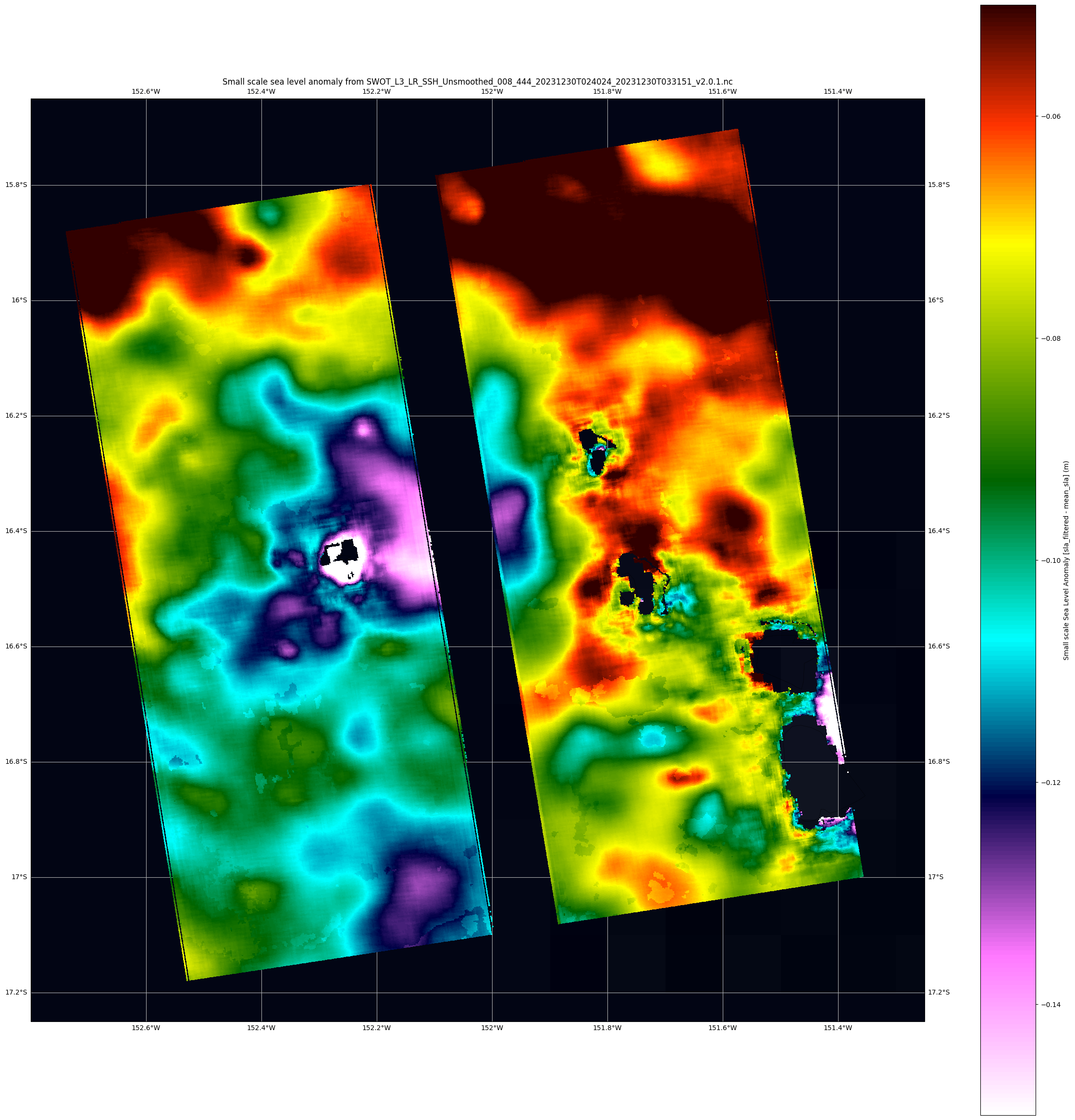

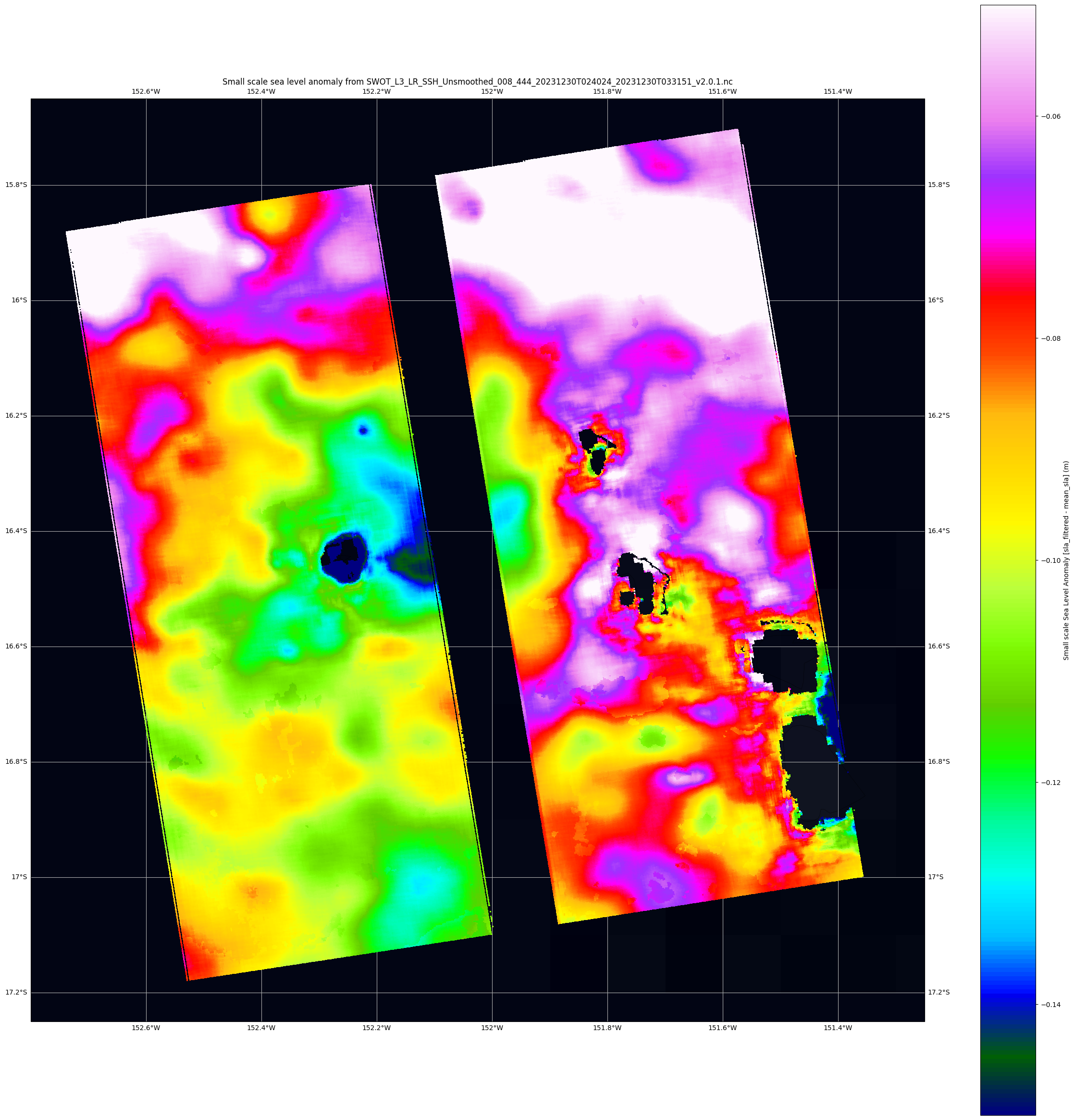

Small scale variations (sla_filtered - mean)
